Garage floor installation, Geisenheim, Germany

Object

Private garage

Location

Heisenheim, Germany

Year

2025

Project history

We were invited to diagnose the condition of the floor in a private garage. The owner faced a problem when the ceramic tiles previously laid began to detach from the base over time.

During the initial inspection and partial removal of the coating, the main cause of damage became clear. It turned out that the tiles were glued with an adhesive mixture intended only for indoor use, which could not withstand the operating conditions of the garage.

Since the quality of the base was also questionable, we conducted a non-destructive strength test of the screed using a Schmidt hammer. The diagnosis showed that the old screed was unsuitable for applying a new durable and wear-resistant coating recommended for garage spaces.

Solution

Based on the inspection results, it became clear that the old base was beyond repair and required complete replacement. The only correct solution we proposed was a comprehensive approach: complete removal of the old coating along with the weakened screed.

Our plan included installing a new reinforced concrete base designed to handle continuous loads from vehicles and garage equipment. As a finishing layer, we recommended the proven wear-resistant TC Floor 2130 system — a non-slip coating with contrasting chips from our partner, REMMERS. TC Floor 2130 provides durability, chemical resistance, and a neat aesthetic appearance.

It has the following test certificates:

Fire safety class Bfl-s1
Food certificate
Certificate of sustainability
Testing for room cleanliness

Process of working with an object

01 - Tile removal 02 - Diagnosis of the base 03 - Dismantling of existing screed 04 - Pouring a new reinforced concrete slab 05 - Grinding the base plate 06 - Application of wear-resistant floor coating
1

Stage 1

Tile removal

Stage 2

Diagnosis of the base

Stage 3

Dismantling of existing screed

Stage 4

Pouring a new reinforced concrete slab

Stage 5

Grinding the base plate

Stage 6

Application of wear-resistant floor covering

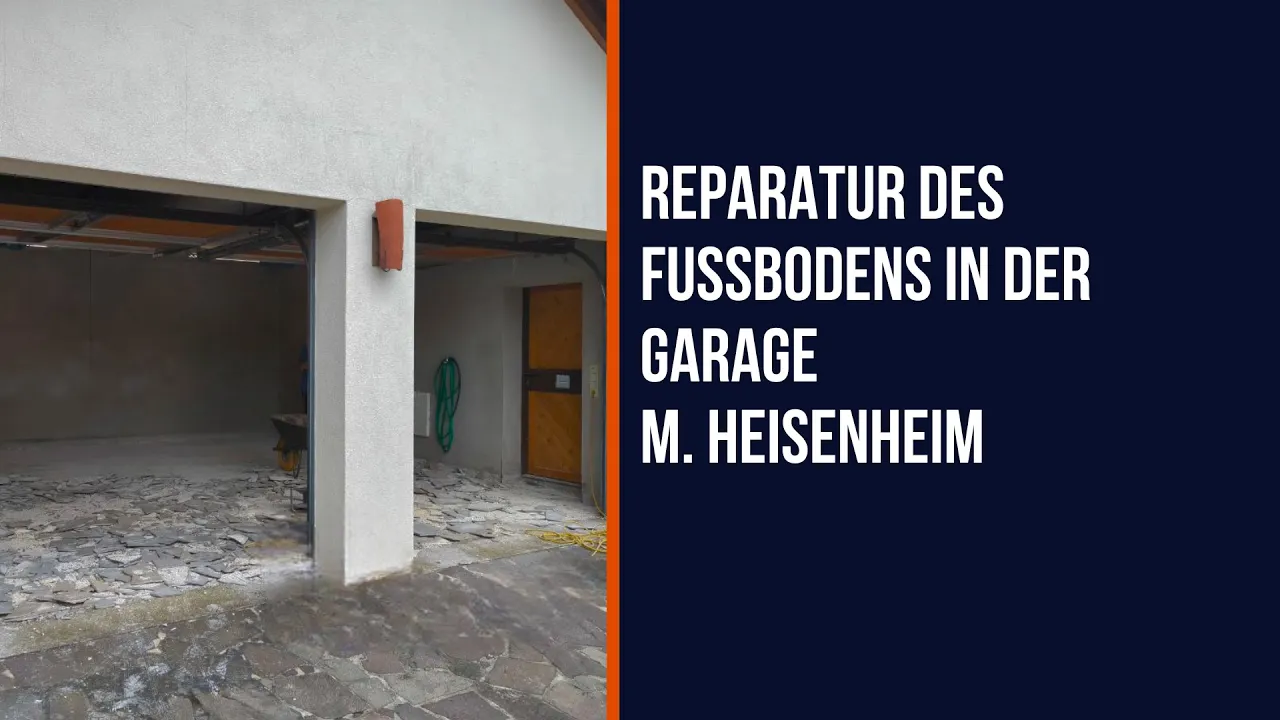

Photo from the site

Watch our videos

Customer Feedback

“This is no longer a garage, but a living room!” exclaimed the customer when he first saw the finished work.
